IO Cards

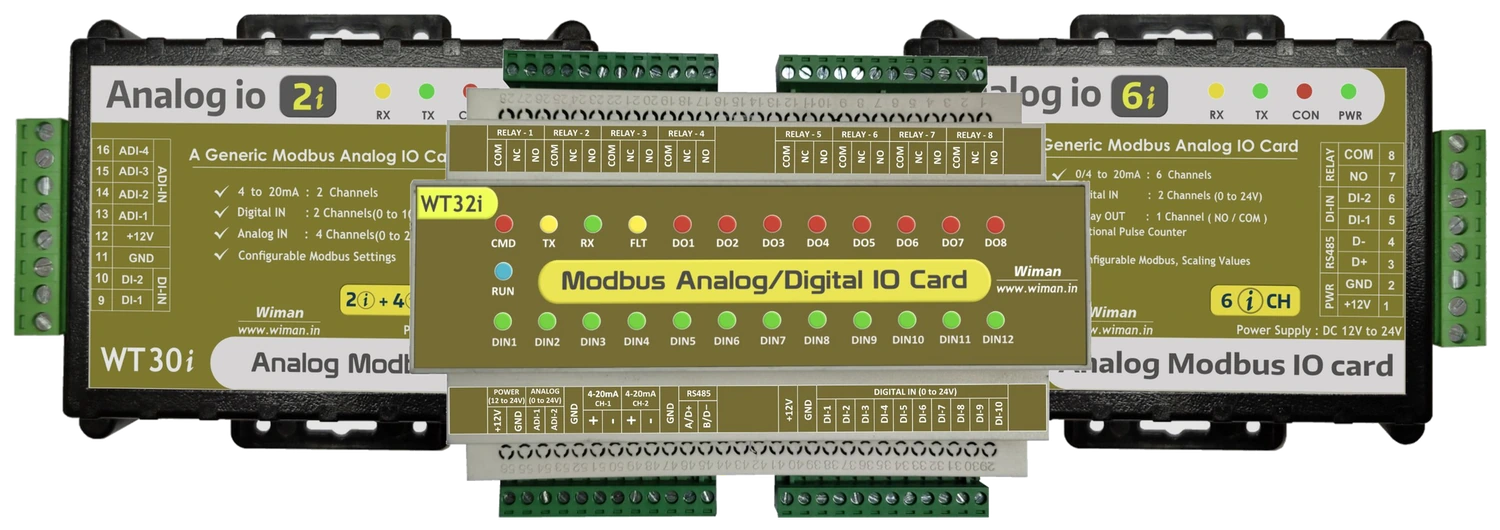

Modbus RTU IO expansion cards over RS485
Generic Modbus Analog / Digital IO cards for gateways, PLCs and SCADA masters. Voltage, current, digital and pulse inputs with relay outputs — configurable addressing, scaling and resolution over RS485.
10
Digital Inputs(WT32i · 0–24 V)
8
Digital Outputs(WT32i · Modbus coils)
6 + 6
Analog Inputs(WT36i · 0–10 V / 4–20 mA)
32-bit
Pulse Counters(0 – 999999)
RS485 · Modbus RTU
Slave Interface
12 – 24V DC
Wide Voltage Input
Standard RTU slave — works with any Modbus master
Address, scaling & resolution set via holding registers
Voltage, current, digital & pulse on one card
Outputs driven directly by Modbus coils
RX · TX · CON · PWR diagnostics at a glance
Configurable failsafe outputs on WT32i

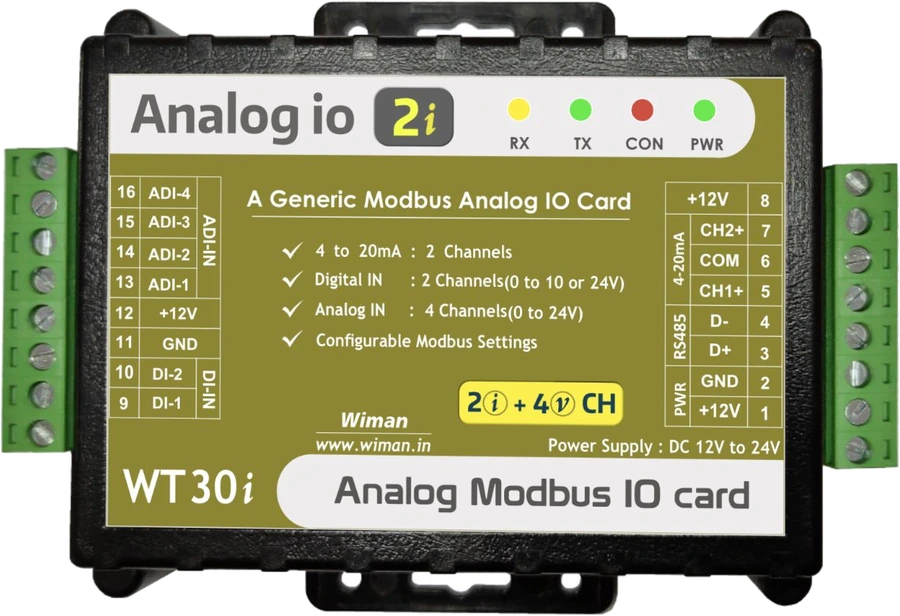

Analog Modbus IO Card

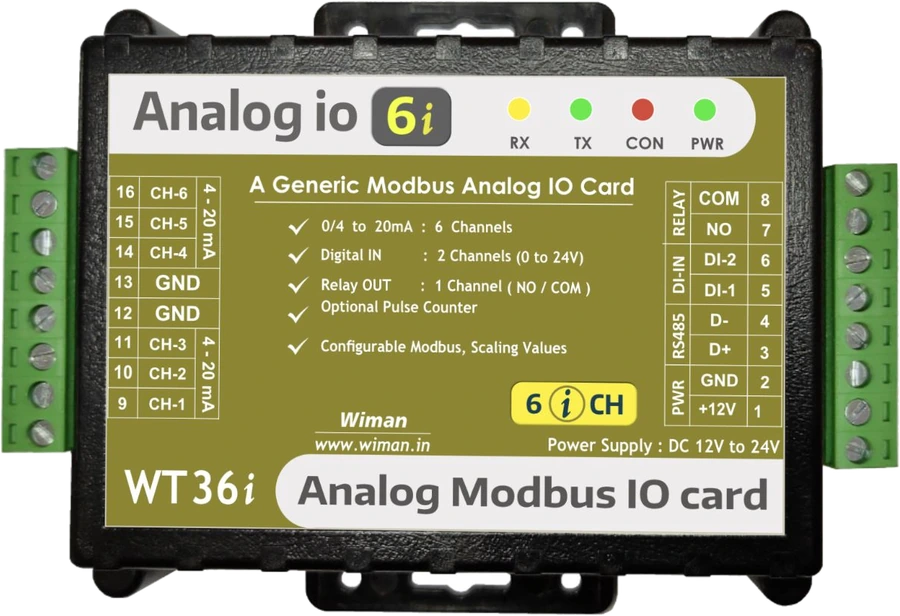

Analog Modbus IO Card

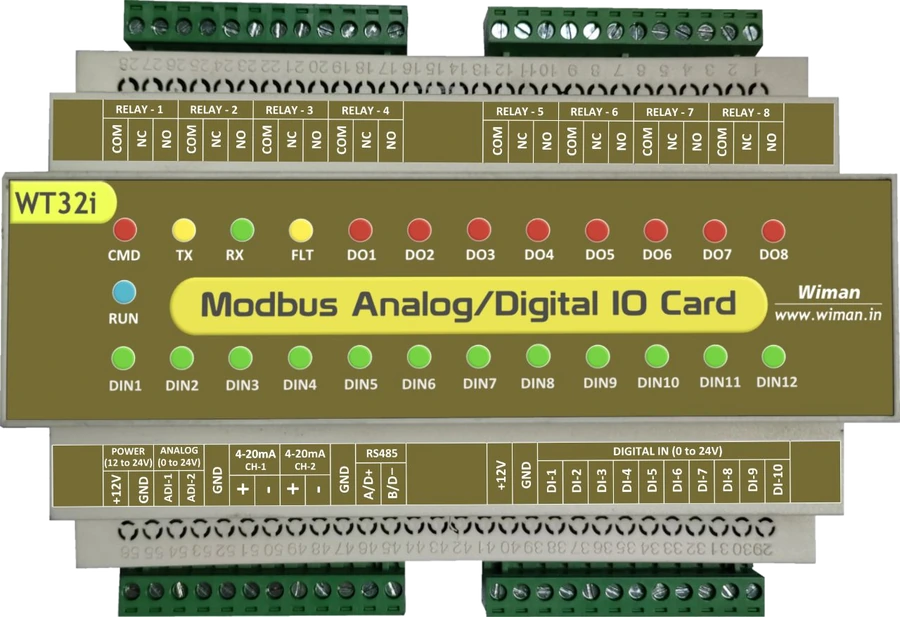

Analog / Digital IO Card
No programming required — device ID (1–247), baud rate (2400–115200), parity, scaling and input modes are all set through standard Modbus registers. Works with any Modbus RTU master, including all Wiman gateways.
| Signal | WT30i | WT36i | WT32i |
|---|---|---|---|
| Analog In (0–10 V) | 4 | 6 | 2 |
| Current In (4–20 mA) | 2 | 6 | 2 |
| Digital In (0–24 V) | 2 | 2 | 10 |
| Digital / Relay Out | — | 1 | 8 |
| Pulse Counters | 2 | 2 | — |
Note: Full register maps and utilities are available in Client Portal.
Register maps, configuration software, device manuals, 24/7 chat support, order tracking and more. Login to Client Portal for secure access.
Login to Client PortalOur engineering team can customize channel counts, signal types and branding to match your exact requirements.
