Home › Products › PRO Series › WT600M
PRO Series
Industrial Ethernet IoT Gateway
Smart RS485 / TCP Modbus / IO / LoRa to Ethernet gateway — one shared LAN port carries Modbus TCP and event data to your servers, with smart redundancy and inbuilt logging.
DUAL SERVER|SHARED LAN|STORE & FORWARD|LOCAL CONSOLE
64
Max Slaves(RS485 + TCP + LoRa)
3,000
Registers(Dynamic Read)
10/100 Mbps
Ethernet(Auto Negotiation)
-30°C to +85°C
Wide Temp. Operation
12 – 24V DC
Wide Voltage Input

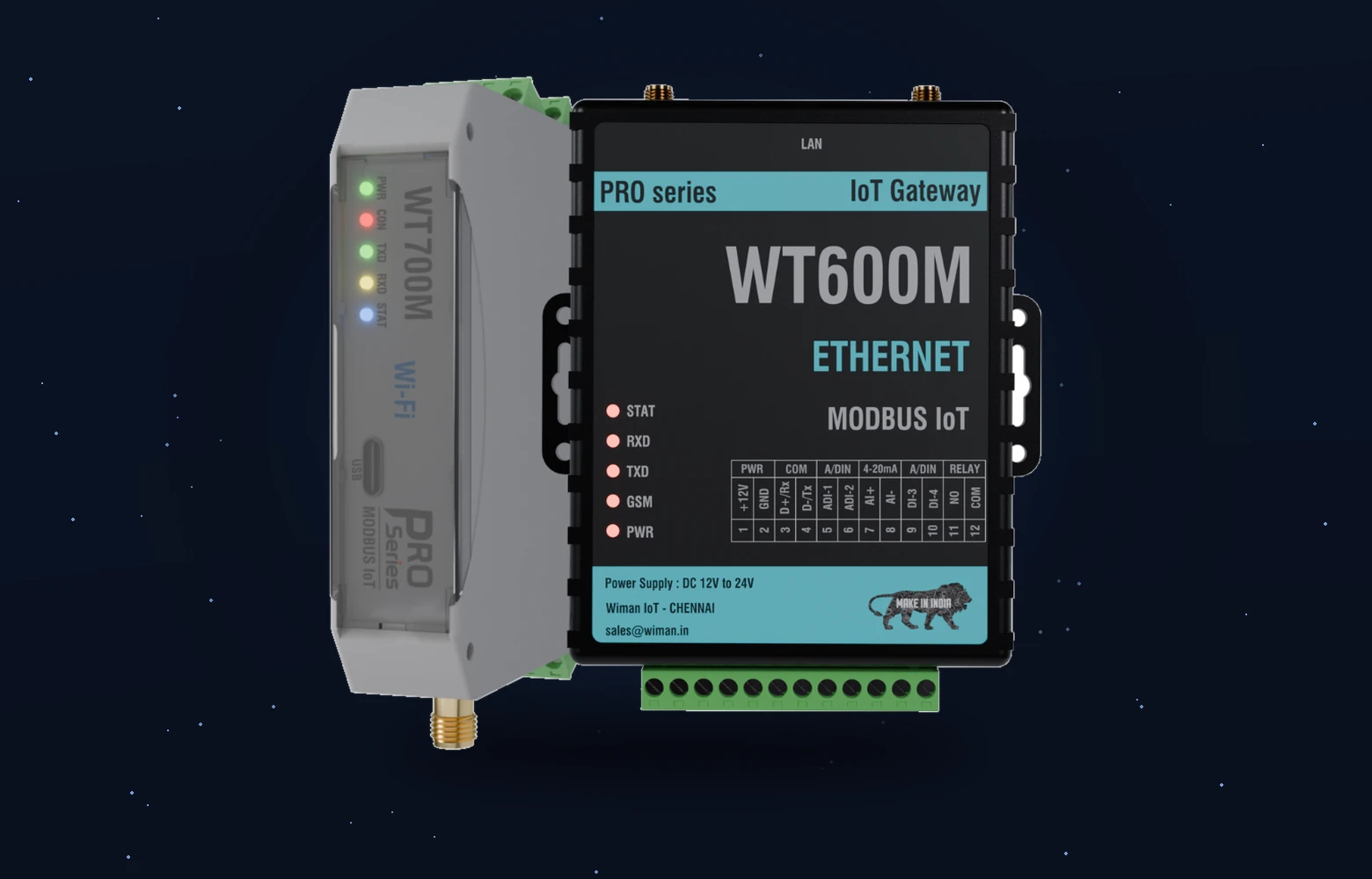

DIN / Wall Mount
Flexible Installation
Same hardware — DIN clip or wall-flange enclosure.
Mechanical drawings & pin details are included in the datasheet.
Configuration software, device manuals, user guides, 24/7 chat support, order tracking and more. Login to Client Portal for secure access.
Login to Client PortalRugged & Reliable
Industrial Grade
OEM Ready
Long Term Support
Specifications
| Ethernet | |
|---|---|
| Interface | RJ45 – 10BASE-T / 100BASE-TX (Auto) |
| Speed | 10/100 Mbps, Half/Full Duplex (Auto Negotiation) |
| TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP |
| Modbus Protocol | Modbus RTU Master, TCP Modbus Master |
| Configuration | Web Config, Serial/IP Utility, IP Commands |
| Serial | |
|---|---|
| Interface | RS232 / RS485 |
| Baud Rates | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps |
| Data Bits | 7 / 8 bits |
| Parity | None / Even / Odd |
General Specifications
| Connector | Micro-Fit 5.0 – 12 Pin (2 Power / 2 Modbus / 8 IO) |
| Dimensions (L×W×H) | 100 × 85 × 24 mm |
| Weight | 160 g |
| Operating Voltage | 12–24 V DC |
| Temperature | -30 °C to +85 °C |
General Communication
| TX Protocol | Configurable TCP / HTTP / MQTT |
| HTTP Methods | Configurable GET / POST |
| Format | Configurable JSON / CSV |
| Device Config | Serial / IP Utility / Web / Server IP Commands |
| Polling Modes | RS485 RTU Modbus, TCP Modbus Master |
| OTA / Updates | IP Utility, Web Config, IP Commands |
| LoRa Support | Inbuilt LoRa – Wireless RS485 |
All dimensions are in mm.
Pin Configuration
| DIN | FM | Section | Label | Type | Purpose |
|---|---|---|---|---|---|
| 1 | 1 | Power | +12V | Input | DC Power +12V to +24V |
| 2 | 2 | Power | GND | Input | Power Ground |
| 3 | 3 | COM | D+/TX | Comm | RS485 Positive / TX |
| 4 | 4 | COM | D-/RX | Comm | RS485 Negative / RX |
| 5 | 8 | 4–20 mA | AI- | Analog | Current Input – |
| 6 | 7 | 4–20 mA | AI+ | Analog | Current Input + |
| 7 | 6 | ADI | ADI-2 | Analog/Digital | Configurable Input |
| 8 | 5 | ADI | ADI-1 | Analog/Digital | Configurable Input |
| 9 | 11 | Relay | NO | Output | Normally Open Contact |
| 10 | 12 | Relay | COM | Output | Relay Common |
| 11 | 9 | DI | DI3 | Digital / Pulse | Digital Input |
| 12 | 10 | DI | DI4 | Digital / Pulse | Digital Input |
Interfaces
Power Supply
12–24 V DC (Reverse Polarity Protection)
Analog / Dig. In
2× (0–24 V) Analog/Digital Voltage Input
Digital Input
2× (0–24 V) Pure Digital Input
Current Input
1× (4–20 mA) Current Input
Relay Output
1× Relay Output
RS485 Port
Multiple Modbus Slave Device Connection
USB Port
Type-C – PC Utility Configuration
LED Indicators
Power / IP / Modbus Status
LAN Port
TCP Modbus Slaves & Event Transfer to Cloud
