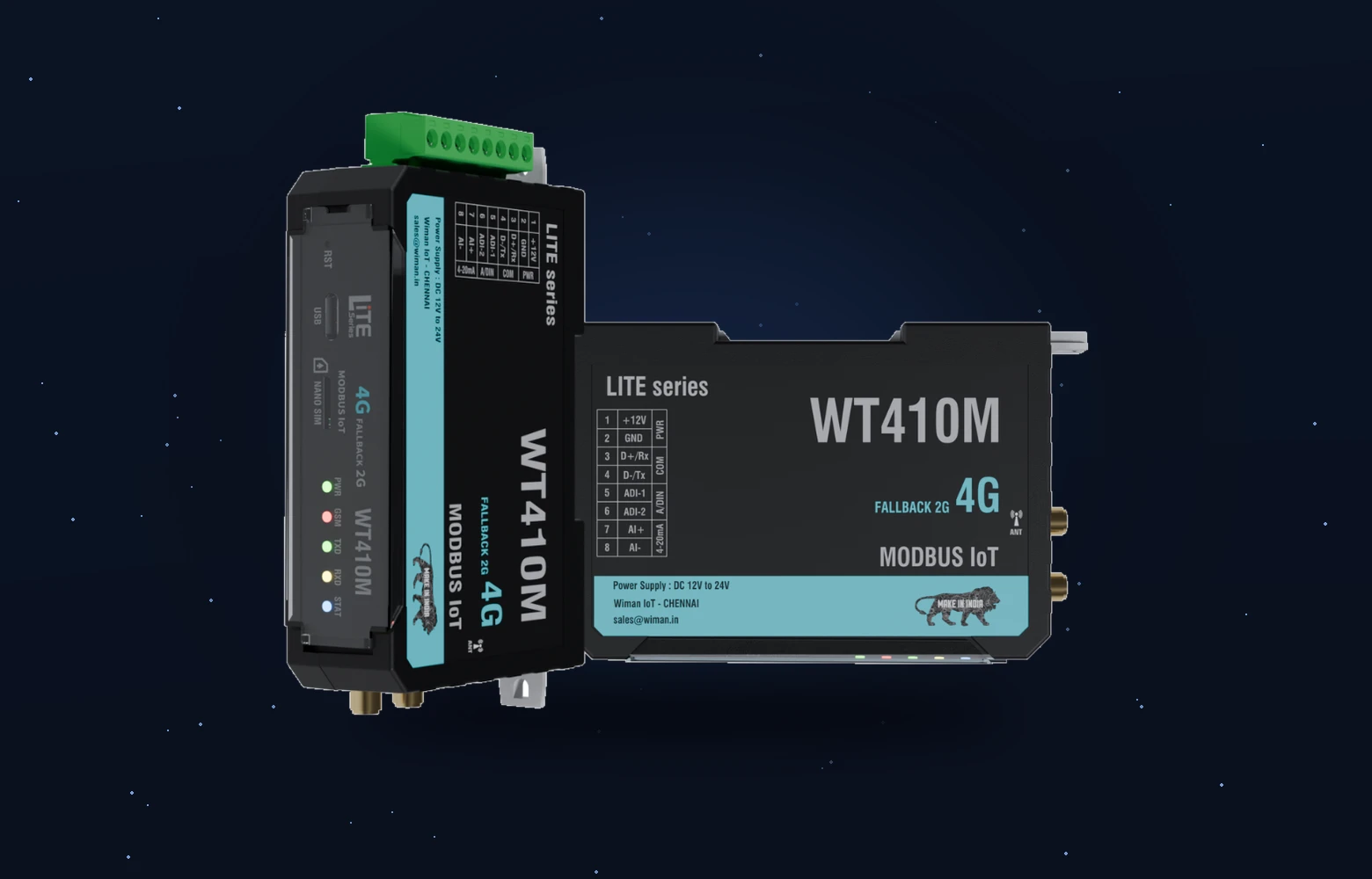

Home › Products › LITE Series › WT410DM
LITE Series
Reliable, cost-effective 4G gateway for professional IoT applications — single-server delivery, inbuilt data logging, and one device for DIN rail or wall mounting.
SINGLE SERVER|STORE & FORWARD|SMS ALERTS|LOCAL CONSOLE
32
Max Slaves(RS485 Modbus)
1,800
Registers(Dynamic Read)
17,500
Log Records(Single Server)
-30°C to +85°C
Wide Temp. Operation
12 – 24V DC
Wide Voltage Input
DIN / Wall Mount
Same Device — Both Options
One device — both mounting options. No separate variant required.
Terminal maps are included in the catalogue.
Configuration software, device manuals, user guides, chat support, order tracking and more. Login to Client Portal for secure access.
Login to Client PortalRugged & Reliable
Industrial Grade
OEM Ready
Long Term Support
GSM / LTE Band Support
| Network Type | Region | Bands |
|---|---|---|
| LTE FDD (4G) | Asia | B1 / B3 / B5 / B8 |
| LTE FDD (4G) | Europe | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| LTE TDD (4G) | Asia | B34 / B38 / B39 / B40 / B41 |
| LTE TDD (4G) | Europe | B38 / B40 / B41 |
| GSM (2G) | Asia | B3 / B8 |
| GSM (2G) | Europe | B2 / B3 / B5 / B8 |
Specifications
| Serial | |
|---|---|
| Interface | RS232 / RS485 |
| Baud Rates | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps |
| Data Bits | 8 bits |
| Parity | None / Even / Odd |
General Specifications
| Terminals | 8, pluggable (2 Power / 2 Modbus / 4 IO) |
| Dimensions (W×H×D) | 105.66 × 74.46 × 26.50 mm (128.00 mm overall width) |
| Weight | 130 g |
| Operating Voltage | 12–24 V DC |
| Temperature | -30 °C to +85 °C |
General Communication
| TX Protocol | TCP / HTTP / MQTT – SSL on 4G |
| HTTP Methods | Configurable GET / POST |
| Format | Configurable JSON / CSV |
| Server Support | Single Server |
| Device Config | SMS / PC Utility / Server IP Commands |
| OTA Updates | Over the air, no site visit |
| SIM | Internal SIM (1.8V / 3V) |
The same WT410DM fits either way. No separate variant is needed.
DIN Rail
Hooks onto a standard DIN rail; two slide locks hold it there.
Wall Mount
Unplug the green terminal block first.
Mechanical Dimensions
Interfaces
Power Supply
12–24 V DC (Reverse Polarity Protection)
Analog / Dig. In
2× (0–24 V) analog, digital or pulse (ADI-1, ADI-2)
Current Input
1× (4–20 mA) Current Input
RS485 Port
Multiple Modbus Slave Device Connection
USB Port
Type-C – PC Utility Configuration
LED Indicators
Power / GSM / Modbus Status
Antenna
External GSM Antenna (SMA)
