LITE Series

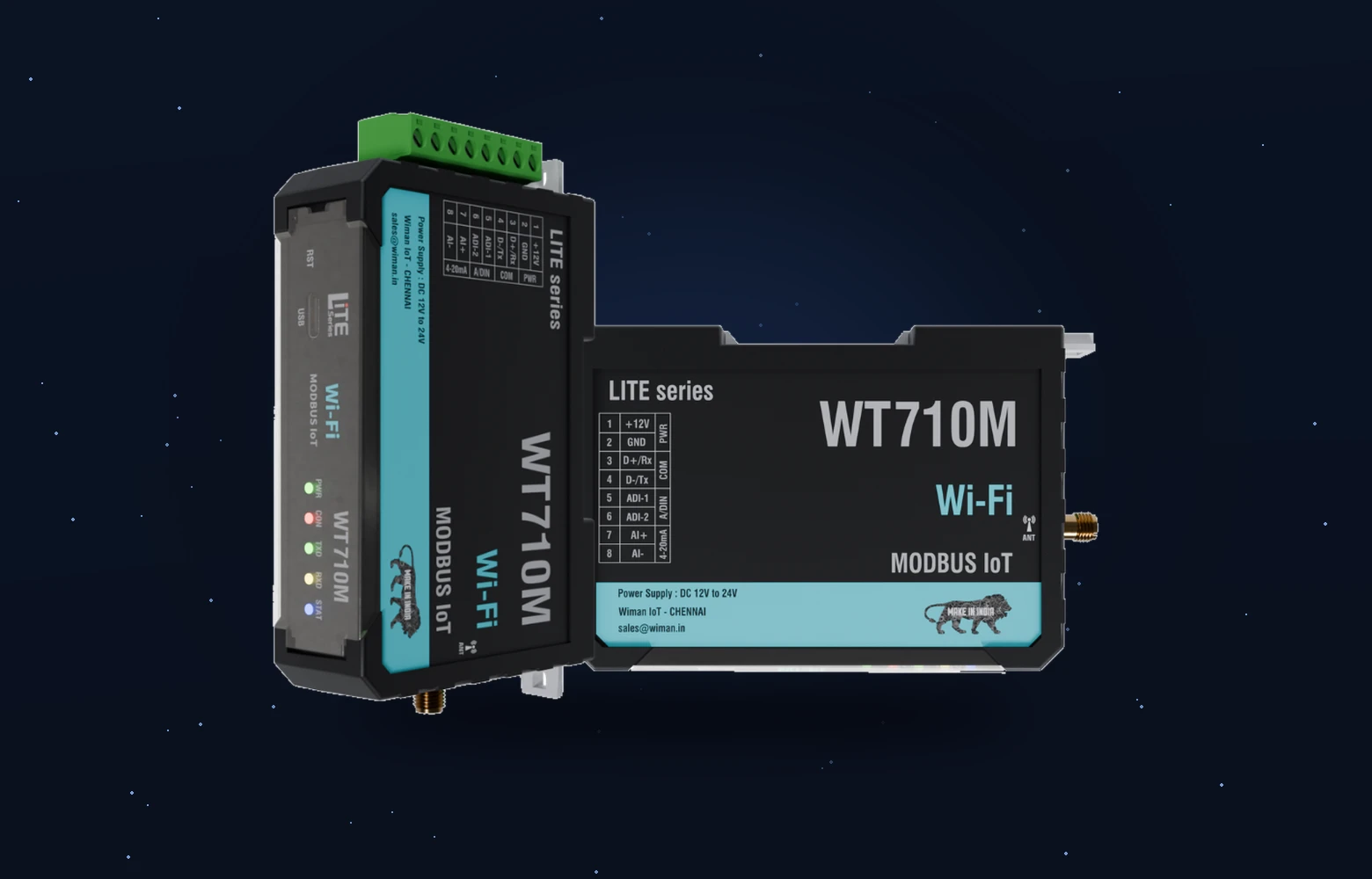

Industrial Wi-Fi IoT Gateway — LITE
Cost-effective RS485 / TCP Modbus to Wi-Fi gateway with dual-SSID redundancy, inbuilt data logging and single-server delivery over secure wireless networks.
DUAL SSID|SINGLE SERVER|STORE & FORWARD|LOCAL CONSOLE
32
Max Slaves(RS485 Modbus)
1,800
Registers(Dynamic Read)
2.4 GHz
Wi-Fi b/g/n(WPA / WPA2)
-30°C to +85°C
Wide Temp. Operation
12 – 24V DC
Wide Voltage Input
DIN / Wall Mount
Same Device — Both Options
One device — both mounting options. No separate variant required.
Mechanical drawings & pin details are included in the datasheet.
Configuration software, device manuals, user guides, 24/7 chat support, order tracking and more. Login to Client Portal for secure access.
Login to Client PortalRugged & Reliable
Industrial Grade
OEM Ready
Long Term Support
Specifications
| Wi-Fi | |
|---|---|
| Band | Single Stream, 2.4 GHz ISM Band |
| Standards | Wi-Fi Certified™ 802.11 b/g/n |
| Security | WEP, WPA™, WPA2™ (Enterprise & Personal) |
| SSID | 2 SSID — connect based on available network |
| Serial | |
|---|---|
| Interface | RS232 / RS485 |
| Baud Rates | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps |
| Data Bits | 7 / 8 bits |
| Parity | None / Even / Odd |
General Specifications
| Connector | Micro-Fit 5.0 – 8 Pin (2 Power / 2 Modbus / 3 IO) |
| Dimensions (L×W×H) | 100 × 85 × 24 mm |
| Weight | 160 g |
| Operating Voltage | 12–24 V DC |
| Temperature | -30 °C to +85 °C |
General Communication
| TX Protocol | Configurable TCP / HTTP / MQTT |
| HTTP Methods | Configurable GET / POST |
| Format | Configurable JSON |
| Server Support | Single Server |
| Wi-Fi Networks | 2 SSID — connect based on available network |
| Device Config | PC Utility / IP Utility / Server IP Commands |
| OTA / Updates | IP Utility, IP Commands |
Mechanical Dimensions
Interfaces
Power Supply
12–24 V DC (Reverse Polarity Protection)
Analog / Dig. In
2× (0–24 V) Analog/Digital Voltage Input
Digital Input
2× (0–24 V) Pure Digital Input
Current Input
1× (4–20 mA) Current Input
Relay Output
1× Relay Output
RS485 Port
Multiple Modbus Slave Device Connection
USB Port
Type-C – PC Utility Configuration
LED Indicators
Power / Wi-Fi / Modbus Status
Wi-Fi Radio
2.4 GHz — internal antenna
